Stretch Film Testing & TDS Guide: How to Pick the Right Film

When wrapped pallets fail during transit or break frequently on the automated wrapping line, companies often blame the machine or the operator. In reality, the root cause is usually selecting the wrong film—or relying on "hand-feel" instead of hard technical data.

To ensure load stability and optimize packaging costs, you need to understand how stretch film is evaluated in the lab. In this guide, we break down the essential stretch film testing items and show you how these test results come together in a Technical Data Sheet (TDS) to help you choose the right film.



Part 1: Key Quality & Performance Testing Items for Stretch Film

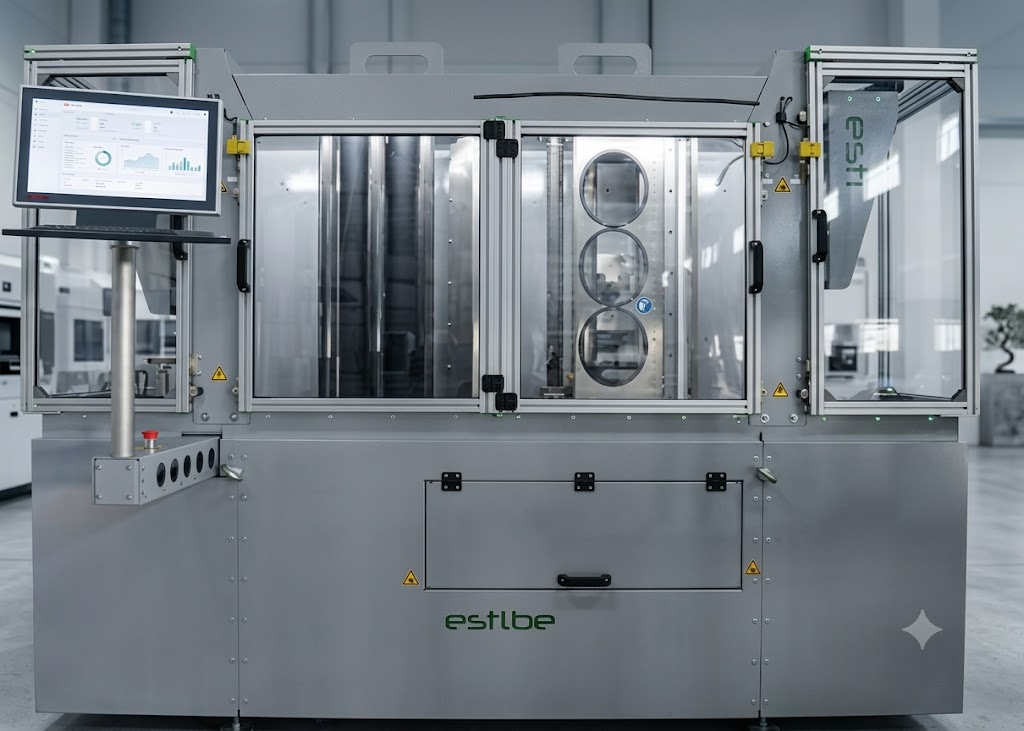

Before a stretch film reaches your warehouse, reputable manufacturers subject it to rigorous laboratory testing. Here are the core testing metrics that define a film’s real-world performance:

1. Mechanical & Load Retention Tests

• Tensile Strength (MD & TD):Measures the maximum pull force a film can withstand before snapping.
• Machine Direction (MD):Evaluates longitudinal strength along the roll. High MD strength prevents film snapping under high machine tension.
• Transverse Direction (TD):Evaluates crosswise strength across the roll width. High TD strength provides sustained clamping force to keep cargo from leaning during transportation.
• Break Elongation:Tests the film's total elasticity and toughness reserve under extreme stretch conditions. High elongation helps absorb sudden shocks from abrupt braking or bumpy roads.
• Puncture Resistance (e.g., 17 N ±10%):A sharp probe pierces the film sample to measure its puncture force limit. This evaluates how well the film resists tearing when wrapping cargo with sharp box corners, metal edges, or rough wooden pallets.
• Stretch Limits:

         Ultimate Stretch: The absolute maximum stretch point before the film tears.

         Optimum Pre-Stretch: The recommended operational stretch range where the film delivers maximum coverage while maintaining high elastic recovery.



2. Specification & Consistency Tests

• Thickness Uniformity & Tolerance (e.g., 17 μm ±1.5 μm):High-precision micrometer gauges verify film thickness across the roll. A tight tolerance ensures smooth unwinding without tracking off-center.
• Metering Accuracy:Precision electronic encoders measure roll length to guarantee every roll delivers full metered length.



3. Environmental & Cling Performance Tests

• Standard Lab Conditions:Testing is performed in controlled environments (typically 27°C / 60% Relative Humidity) to ensure consistent data.
• Cling & Shelf-Life Assessment:Tests the self-adhesive property (cling) of the film over time. Stretch film typically maintains optimal cling and recovery performance for 12 months under proper storage conditions.





Part 2: Connecting the Dots: How Testing Data Creates the TDS

So, how do all these lab test results benefit you as a buyer?

Every value recorded during these tests is compiled into a single document: the Technical Data Sheet (TDS). A Technical Data Sheet is a stretch film’s official performance passport. It serves as a binding quality contract from the manufacturer, proving that the film meets specific physical performance criteria.



Part 3: Practical Buyer’s Guide: Reading the TDS to Select the Right Film

Once you receive a supplier’s TDS, follow this simple framework to make an informed purchasing decision:

1. Quick Check: Focus on the Top 4 TDS Metrics

If you are short on time, evaluate these four specs first:

• Optimum Pre-Stretch Ratio:Determines your material savings per pallet.
• Ultimate Stretch Ratio:Defines your machine’s safety ceiling.
• Puncture Resistance:Determines durability around sharp edges.
• Tensile Strength (MD):Ensures high-speed machine wrapping stability.



2. Critical Mistake to Avoid: Optimum Stretch vs. Ultimate Stretch

Confusing these two specs leads to wasted film or constant machine downtime:

TDS Metric	Sample Value	Real-World Meaning	Operational Impact
Ultimate Stretch	300%	Max limit before snapping (1m stretches to 4m).	Machine Red Line: Never set equipment to this level, or film will break frequently.
Optimum Pre-Stretch	210% – 240%	Recommended operational stretch range.	The Sweet Spot: Balances film savings, strong holding force, and tear prevention.

• Machine tension too low (< 210%):You waste film, pay more per pallet, and miss out on the film's natural elastic snap-back force.
• Machine tension too high (> 240%):Operating near the ultimate limit thins the film excessively, making it vulnerable to catastrophic tearing on sharp corners.



3. Step-by-Step Selection Rule

Step 1: Match Your Equipment

Manual / Hand Wrapping: Select standard film with moderate elongation (100%–150%).

Automatic High-Speed Wrappers: Choose high-performance machine film with an optimum pre-stretch rating of 200% to 300%+ to maximize machine ROI.



Step 2: Match Your Cargo

Uniform Box Pallets: Prioritize Optimum Pre-Stretch to minimize packaging cost per load.

Irregular / Sharp / Heavy Cargo: Prioritize Puncture Resistance (>15 N) and Transverse Tensile Strength (TD) to prevent pallet collapse.



Step 3: Verify Test Conditions & Storage

Ensure metrics are derived from standardized laboratory conditions. Store film away from direct sunlight at ambient temperatures and use within 12 months.





Conclusion

Understanding stretch film laboratory testing demystifies the technical jargon on a Technical Data Sheet (TDS). By comparing TDS metrics directly against your machinery and cargo profile, you can significantly reduce material waste, prevent product damage, and lower overall shipping costs.
